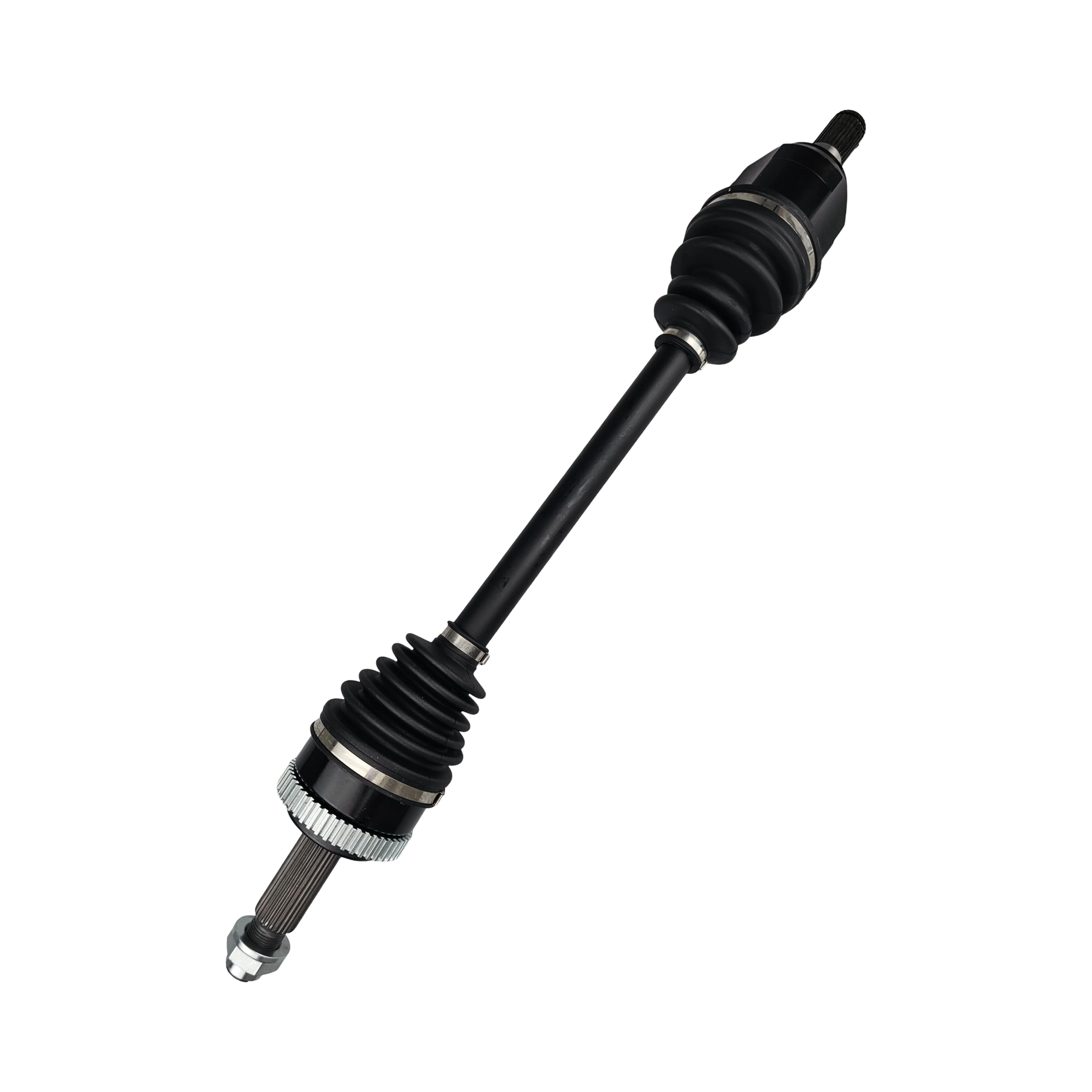

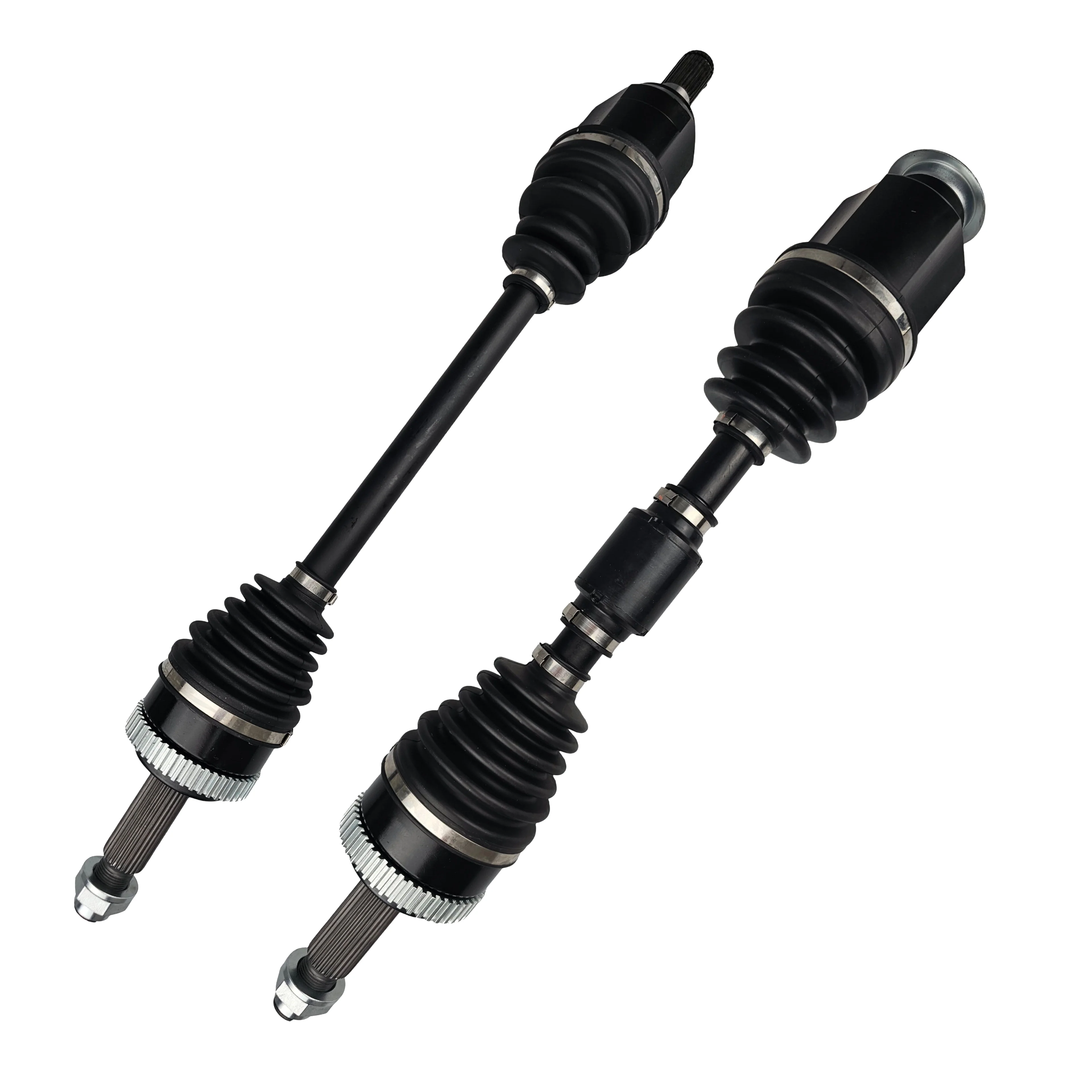

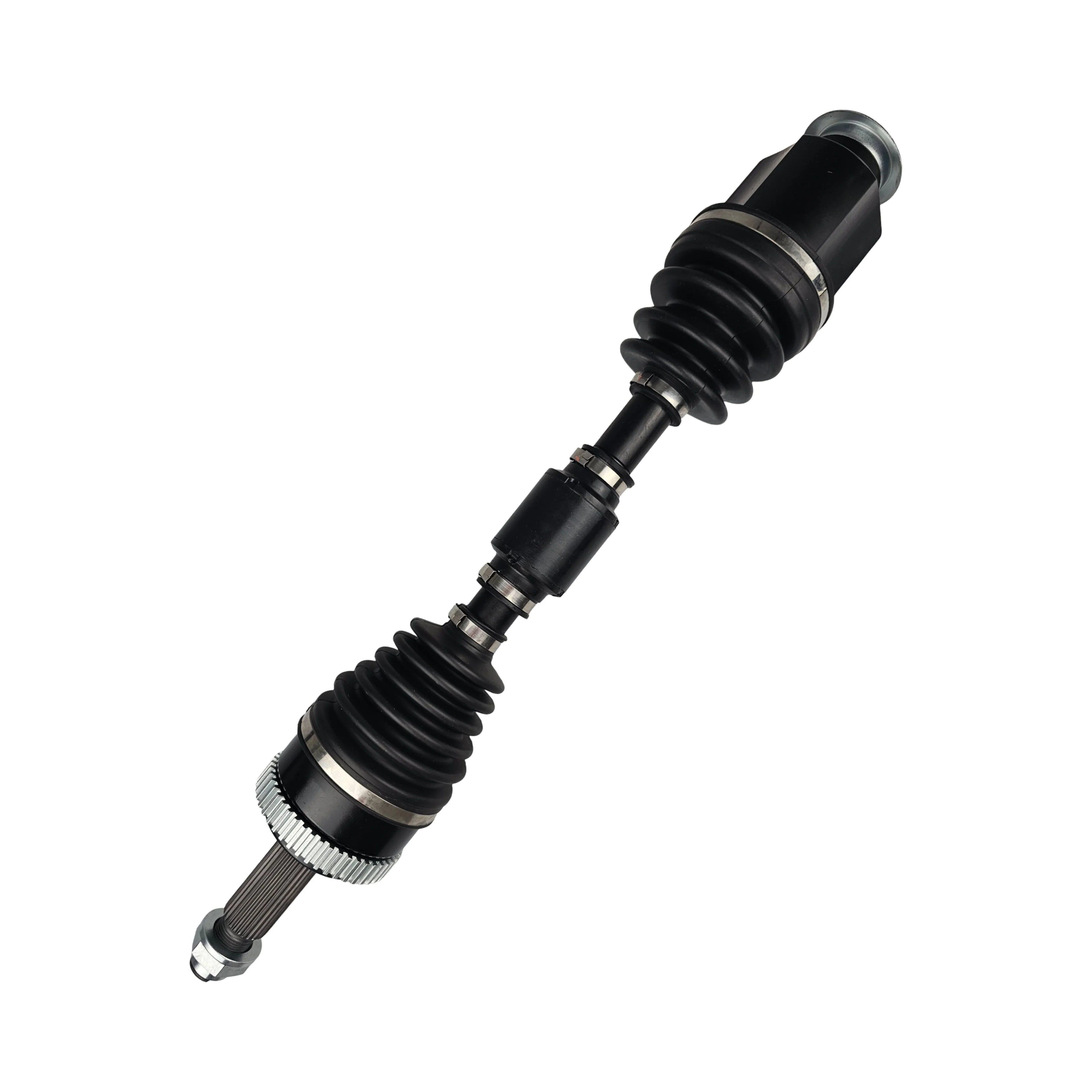

CV Axle Drive Shaft - Right and Left Hand Side Automatic/Manual FWD

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

Models Including Sub Models:

• Hyundai iX35 LM 10/2013-06/2015 JU81F 2.0L G4NC I4 16V DOHC VVT
  Sub Models include  Elite, Trophy
• Hyundai iX35 Active LM 10/2013-06/2015 JU81F 2.0L G4NC I4 16V DOHC VVT
• Hyundai iX35 LM 10/2013-06/2015 JU81F 2.0L G4NC I4 16V DOHC VVT
  Sub Models include SE, Elite
• Kia Sportage Si Premium SL 02/2014-01/2016 PC81B 2.0L G4NC I4 16V DOHC VVT
• Kia Sportage Si SL 05/2014-01/2016 PB81B 2.0L G4NC I4 16V DOHC VVT
• Kia Sportage Platinum SL 02/2014-01/2016 PC81B 2.0L G4NC I4 16V DOHC VVT

Sizing and Specifications

Right Hand Side

• Length (Compressed):  562mm
• Spline Count - Outer/Wheel Side:  27T
• Spline Count - Inner/Diff Side:  26T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• ABS Ring Teeth:  48T

Left Hand Side

• Length (Compressed):  682mm
• Spline Count - Outer/Wheel Side:  27T
• Spline Count - Inner/Diff Side:  27T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• ABS Ring Teeth:  48T

What's Included

• 2 x CV Shafts

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
