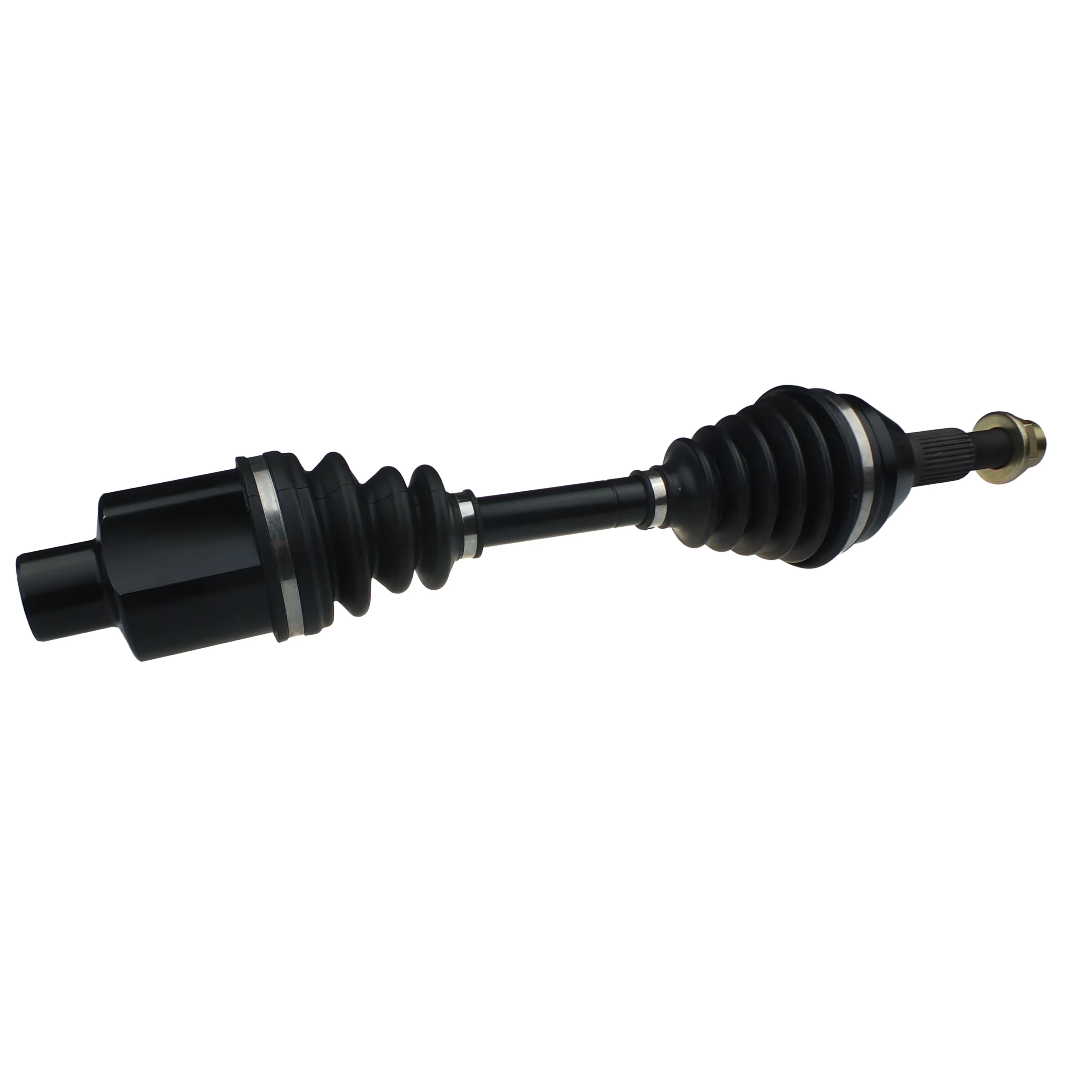

Front Right CV Axle Drive Shaft for Holden Captiva 5 7 CG 2007-2012 - Series 1
CV Axle Drive Shaft - Front Right Hand Side 4WD Manual & Automatic/ FWD Manual
***Note: Series 1, Models up-to 01/2011 & 05/2012 Only - Please Check Manufacturing Dates***
***Series 2 RH Drive Shaft Check CVA1595***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Holden Captiva CG 2.0L Z20S1 (LLW) 4WD MAN (03/2007 - 01/2011) Series 1
Sub-Models Include SX - Holden Captiva CG 2.0L Z20S1 (LLW) 4WD AUTO (03/2007 - 01/2011) Series 1
Sub-Models Include SX, CX, LX - Holden Captiva CG 2.0L Z20S1 (LLW) FWD MAN (08/2008 - 01/2011) Series 1
Sub-Models Include SX
- Holden Captiva CG 2.4L Z24SED (LD9) FWD MAN (12/2009 - 01/2011) Series 1
Sub-Models Include 5
- Holden Captiva CG 2.4L Z24SED (LD9) 4WD AUTO (12/2009 - 01/2011) Series 1
Sub-Models Include 5 - Holden Captiva CG 3.0L LF1 4WD AUTO (01/2011 - 05/2012) Series 1
Sub-Models Include 7 CX, 7 LX - Holden Captiva CG 3.2L LU1 (HM) 4WD AUTO (10/2006 - 01/2011) Series 1
Sub-Models Include CX, LX, SX, MAXX
Sizing and Specifications
- Length (Compressed): 555mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 27T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
What's Included
- 1 x CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
Description
CV Axle Drive Shaft - Front Right Hand Side 4WD Manual & Automatic/ FWD Manual
***Note: Series 1, Models up-to 01/2011 & 05/2012 Only - Please Check Manufacturing Dates***
***Series 2 RH Drive Shaft Check CVA1595***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Holden Captiva CG 2.0L Z20S1 (LLW) 4WD MAN (03/2007 - 01/2011) Series 1
Sub-Models Include SX - Holden Captiva CG 2.0L Z20S1 (LLW) 4WD AUTO (03/2007 - 01/2011) Series 1
Sub-Models Include SX, CX, LX - Holden Captiva CG 2.0L Z20S1 (LLW) FWD MAN (08/2008 - 01/2011) Series 1
Sub-Models Include SX
- Holden Captiva CG 2.4L Z24SED (LD9) FWD MAN (12/2009 - 01/2011) Series 1
Sub-Models Include 5
- Holden Captiva CG 2.4L Z24SED (LD9) 4WD AUTO (12/2009 - 01/2011) Series 1
Sub-Models Include 5 - Holden Captiva CG 3.0L LF1 4WD AUTO (01/2011 - 05/2012) Series 1
Sub-Models Include 7 CX, 7 LX - Holden Captiva CG 3.2L LU1 (HM) 4WD AUTO (10/2006 - 01/2011) Series 1
Sub-Models Include CX, LX, SX, MAXX
Sizing and Specifications
- Length (Compressed): 555mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 27T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
What's Included
- 1 x CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
