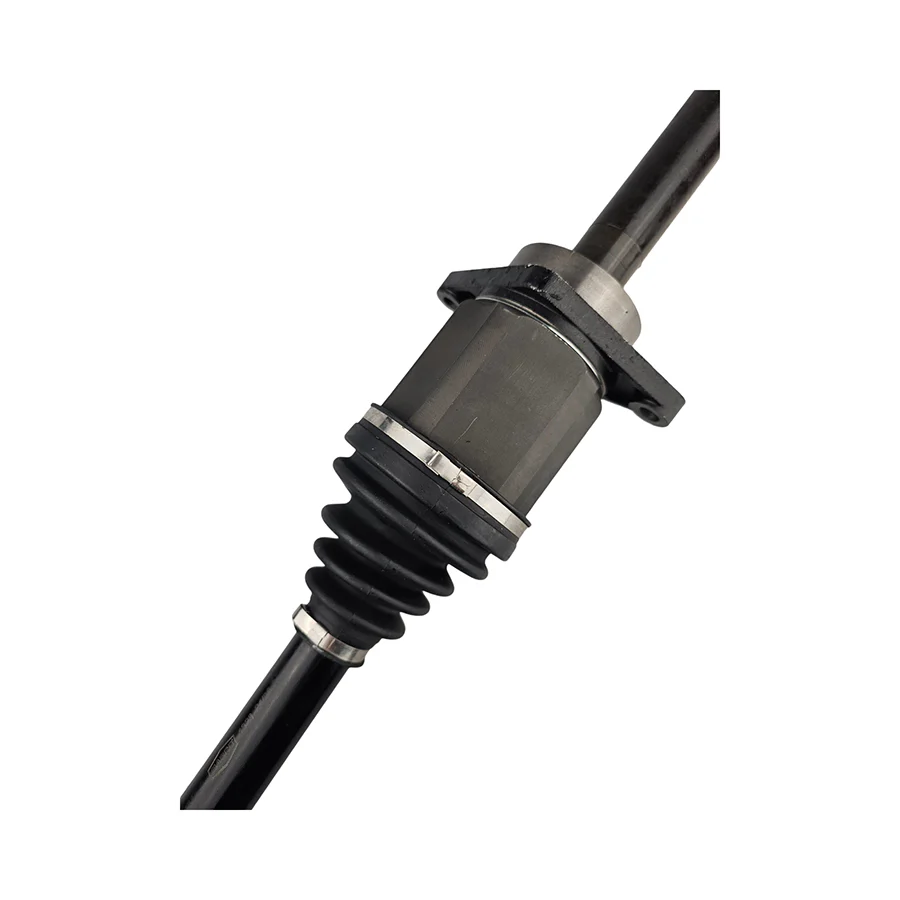

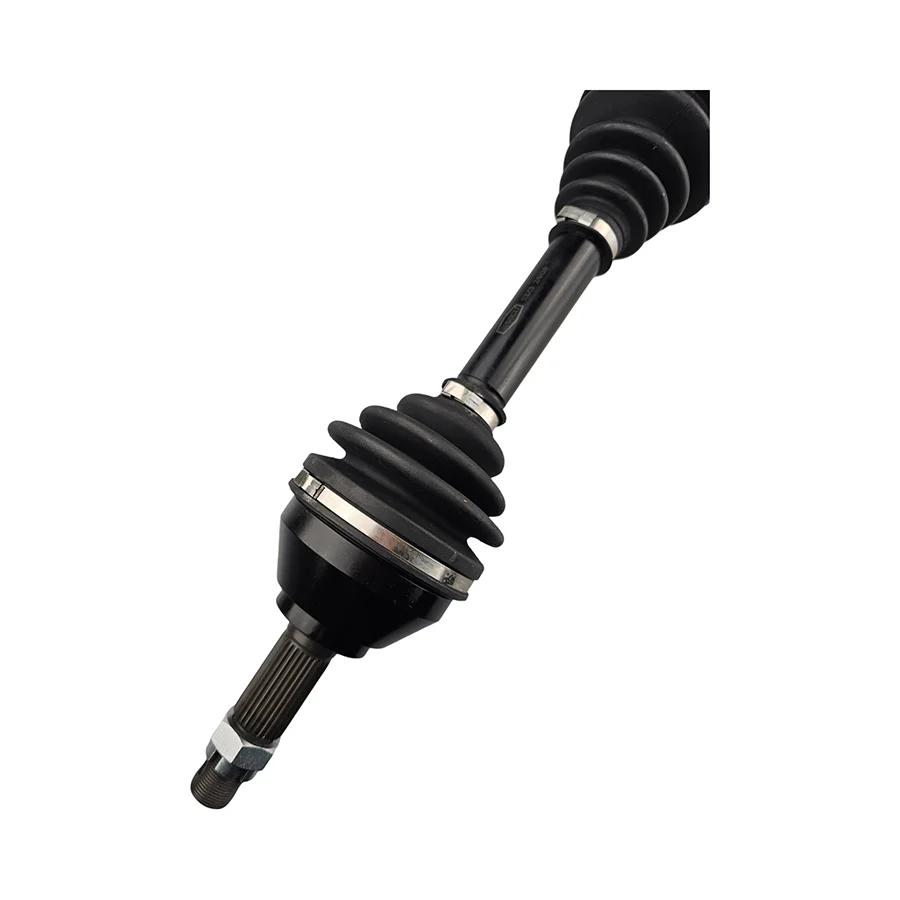

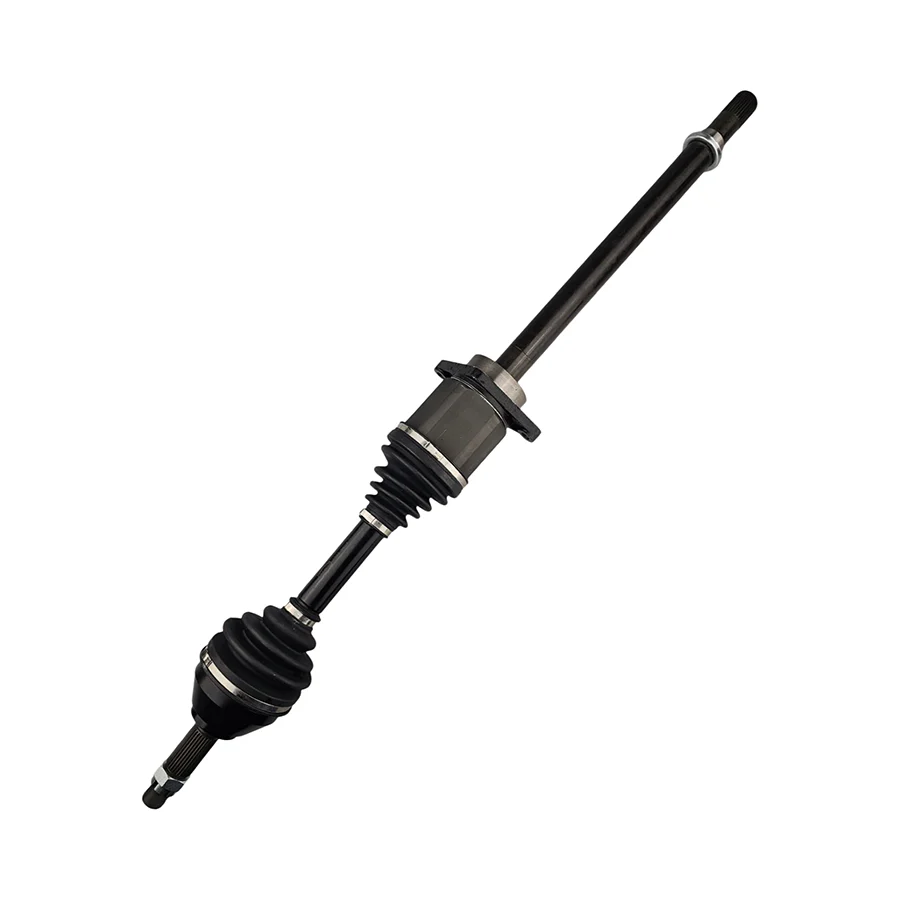

CV Axle Drive Shaft - Front Right Hand Side CVT Manual FWD 4WD AWD

Diesel vehicles, manual transmission

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan X-Trail T31 TCNT31 2.0L M9R 4WD MT (07/2008 - 02/2014) Manual Only
  Includes Sub-models TL, TS
• Renault Koleos H45 2.0L M9R.830 AWD MT (09/2008 - 04/2010) Manual Only
  includes Sub-models Dynamique
• Renault Koleos H45 2.0L M9R.832 FWD MT (09/2009 - 04/2010) Manual Only
  includes Sub-models Dynamique

Sizing and Specifications

• Length (Compressed): 1006mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 29T
• Extension Shaft Length from Inside Mount: 471mm
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
