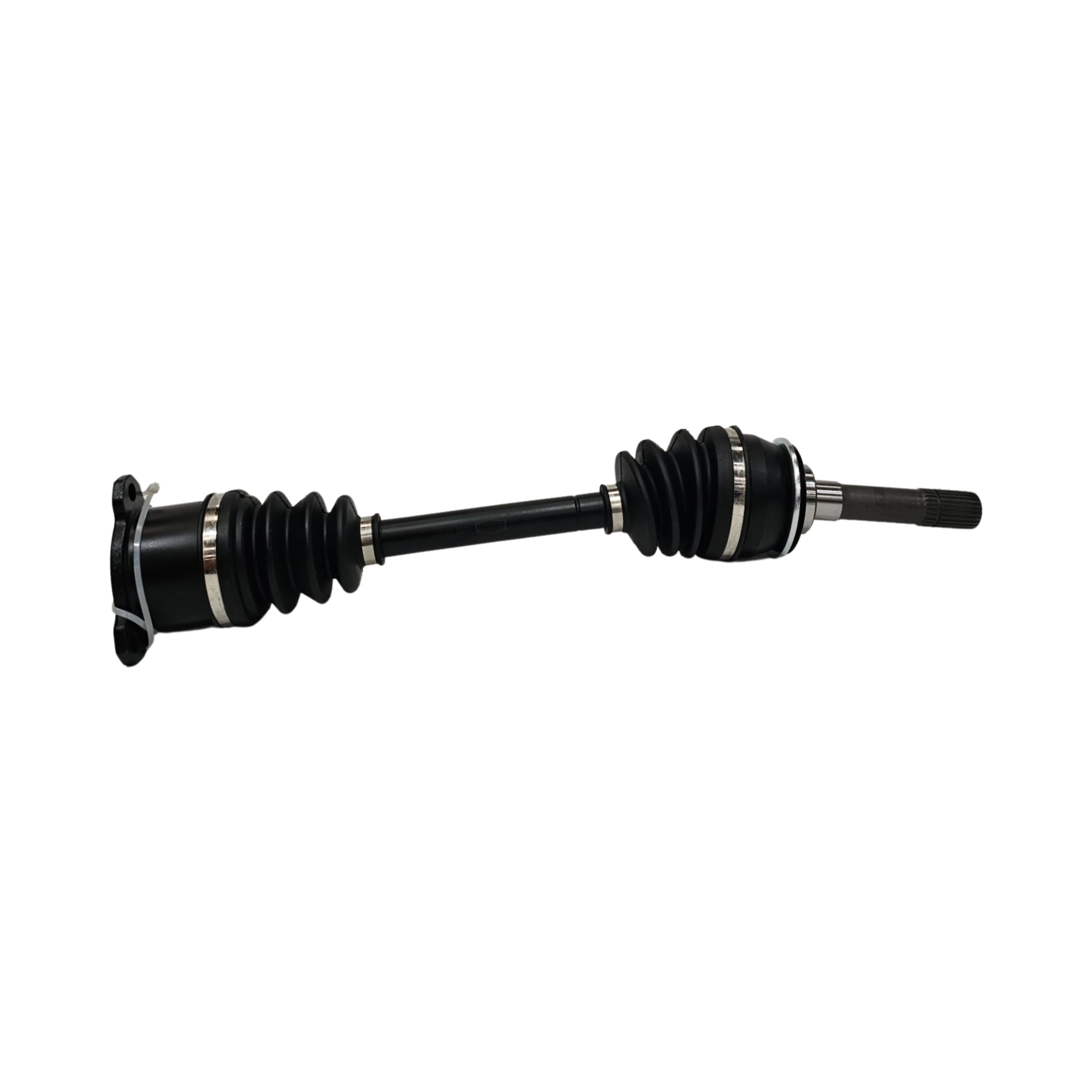

Left CV Drive Shaft for Suzuki X90 Vitara & Grand 1.6 2.0 2.5L 1994-2005 V6

CV Axle Drive Shaft - Left Hand Side Automatic Manual 4WD

For pair kit please see CVA1057-CVA1083

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Suzuki Grand Vitara SQ420 2.0L J20A 4WD (04/1998 - 08/2005)
  Includes Sub-models Sports
• Suzuki Grand Vitara SQ625 2.5L H25A 4WD (04/1998 - 08/2005)
  Includes Sub-models Freestyle, Limited Edition, SLALOM, Sports, Sports Limited
• Suzuki Vitara SV620 2.0L H20A 4WD (04/1995 - 09/1998)
  Includes Sub-models V6
• Suzuki X90 SZ416 1.6L G16B 4WD (1995 - 1998)
  Includes Sub-models

Sizing and Specifications

• Length (Compressed): 532mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: Bolt on Type

• Outboard Joint Type: Ball
• Inboard Joint Type: Ball
• 3 Bolt Inner Joint Diameter: 105mm
• Bolt Hole Diameter: 10.4mm
• 3 Bolt Flange Outer Diameter: 126.5mm
• Hub Bolt Style: M8



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
