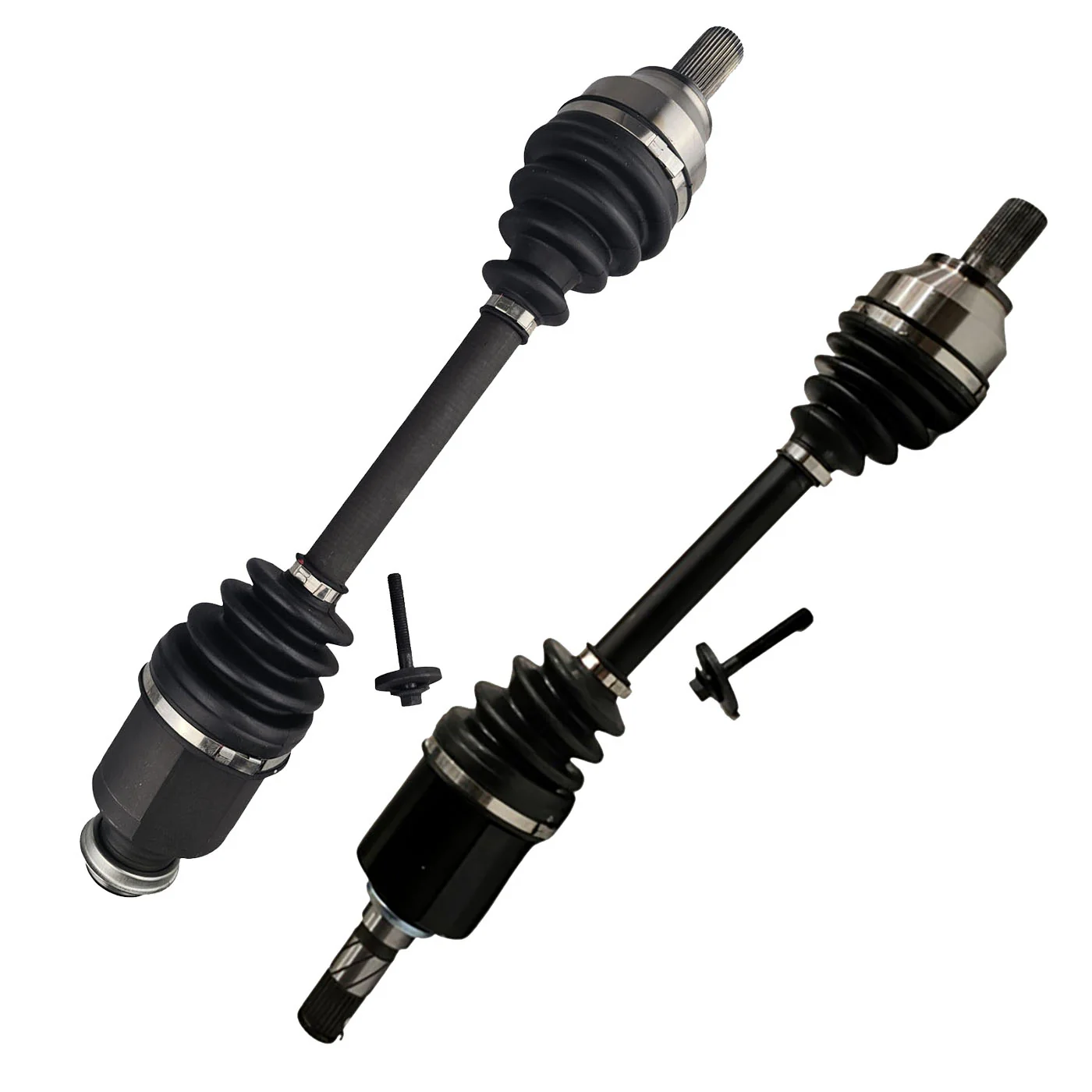

PAIR Left Right CV Drive Shaft for Mazda 3 BK 2.0L LFDE 2.3L L3 2003-2005 Manual

CV Axle Drive Shaft - Left and Right Hand Side Manual FWD Bolt Type

***Note: Manual, Bolt Type***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mazda 3 BKFS BK 2.0L LFDE FWD (2003 - 2005) Manual, Bolt Type
• Mazda 3 BK3S BK 2.3L L3 FWD (2003 - 2005) Manual, Bolt Type
  Sub-Models Include SP23

Sizing and Specifications

Right

• Length (Compressed): 536mm
• Spline Count - Outer/Wheel Side: 36T

• Outer Seal/Oil Seal ID: 55mm

Left

• Length (Compressed): 589mm
• Spline Count - Outer/Wheel Side: 36
• Spline Count - Inner/Diff Side: 28
• Hub Bolt Style Outer Joint: M10 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
